Paper plastic bag making machine

FOB Reference Price:Get Latest Price
$30,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Bag making machine
Bag Type:
Zipper Bag
Condition:
New
Material:
plastic bag paper bag
Computerized:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
WEIBANG
Model Number:
WBZU-E
Voltage:
380V
Power(W):
55kw
Dimension(L*W*H):
13000*2500*1870
Weight:
7.5T
Certification:
CE
Computerized::
yes
function::
three side sealing, zipper bag , standing bag
Material::
Plastic,Paper
Machine Type::
Bag Forming Machine
Bag Type::
3 sides seal bags,For Food,Industry
After-sales Service Provided::
Engineers available to service machinery
Automatic Grade:
Automatic
Type:
Bag Making Machine
Brand Name::
Weibang
machine control::
PLC
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
damp proof packaging
Port
Ningbo
Lead Time :
30days
Video Description
Product Description

Product Application

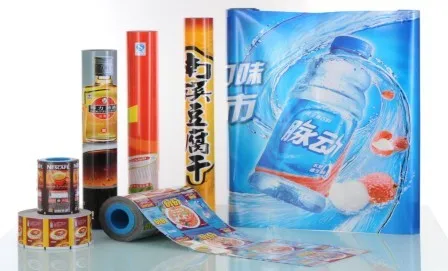

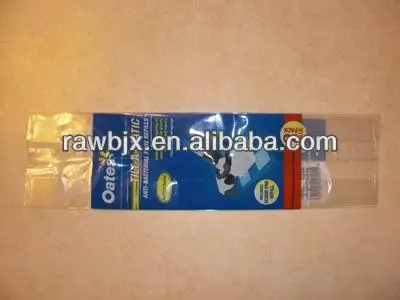

This machine is suitable for producing two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP,PET,CPP,PE,OPP,nylon,aluminum foil and paper as base material.With such characteristics as easy operation,smooth product,beautiful appearance,high-strength thermal edge sealing and high Bag Making Speed.It is a kind of ideal equipment for packing and making pouches.

Model
WBZU-E400
WBZU-E500
WBZU-E600
Max diameter of roll material
Φ600mm
Φ600mm
Φ600mm
Max width of roll material
850mm
1050mm
1250mm
Max width for accessorial material
160mm
160mm
160mm
Max speed
150pieces/min
150pieces/min
150pieces/min
Max bag making width
400mm
500mm
600mm
Bag-making length
50-2400mm
50-2400mm
50-2400mm
Total power
55kw
60kw
65kw
Weight of machine
6500kg
7000kg
7500kg

Main Features

1) Whole machine controlled by central PLC control system with man-machine.More stable perfomance,easy for operation and maintenance.Chinese and English interface language can be shifted easy.

2) Constant auto-tension control for unwinding,LPC edge alignment,AC inverter constant speed auto material feeding.

3) Imported double servo-motor material dragging control system .

4) Main motor for up-down sealing and pressing equipped with inverter.

5) PID for sealing bar temperature adjustment,no touch auto control,centralized setting in man-machine interface.

6) Equipped with pneumatic multi-function auto punching device,trim cutting and auto rewinding and static eliminator

7) Temperature adjustment range:0-300℃

8) Counter:quantity,batch accumulation,pre-set available

9)Operation Method:by length fixation control and/or by photocell tracking control

10) Punching device:working rhythm can pre-aet as continuous,interval or stop,punching time can be pre-set

11) Material skip feeding:one to six times available

12)Batch conveying function available,the quantity of batch can be preset.

Related Products

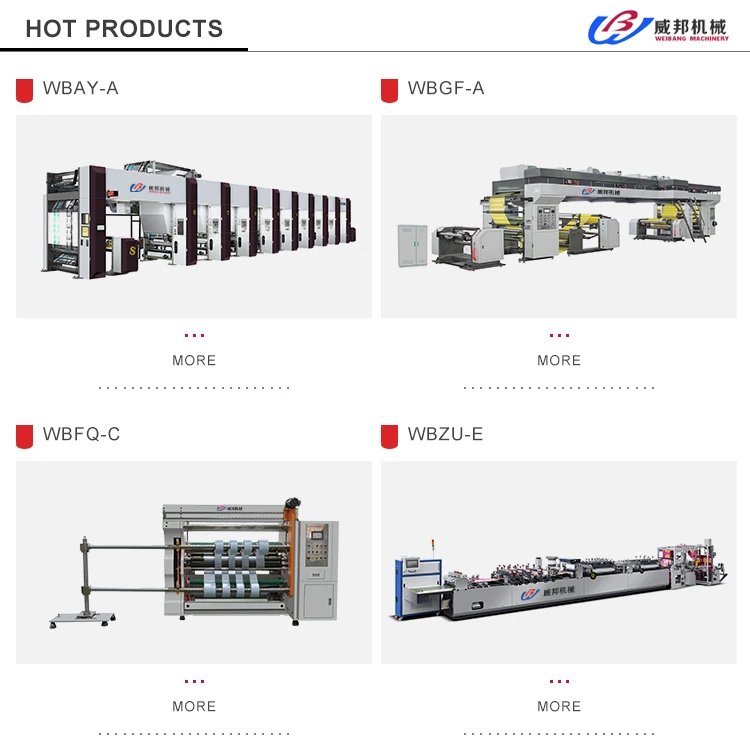

Hot Products
